Product Description

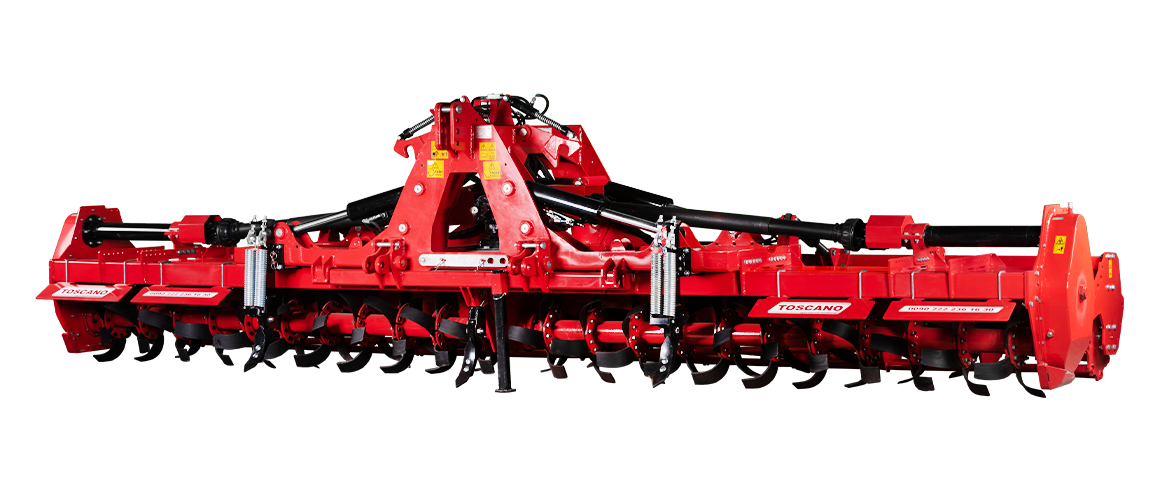

TOSCANO | Folding Rotary Tiller | Model 5300 & 5800 | Work Width 17 To 18.7 Feet | HorsePower 180-300 HP | For Tractor
DESCRIPTION

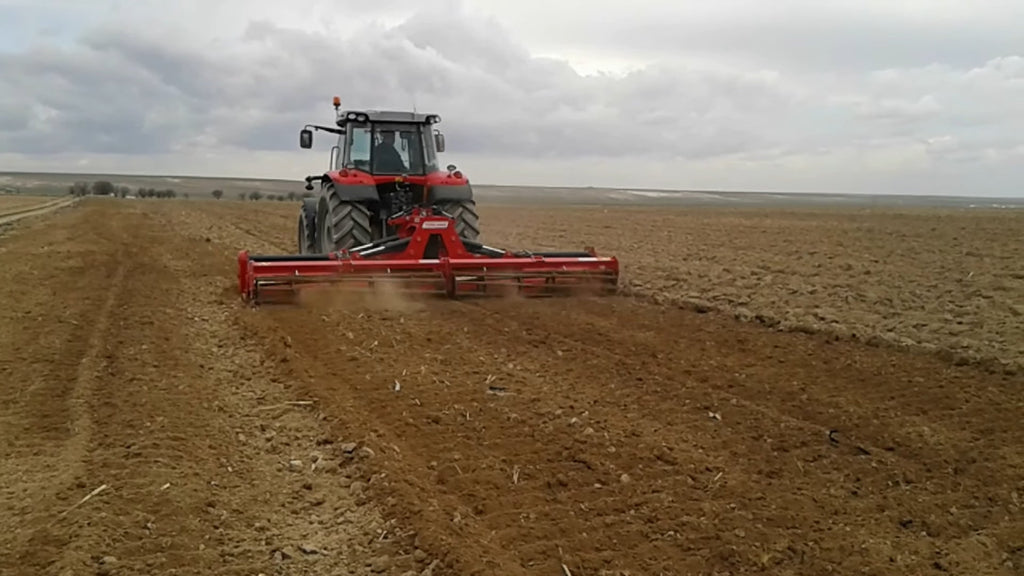

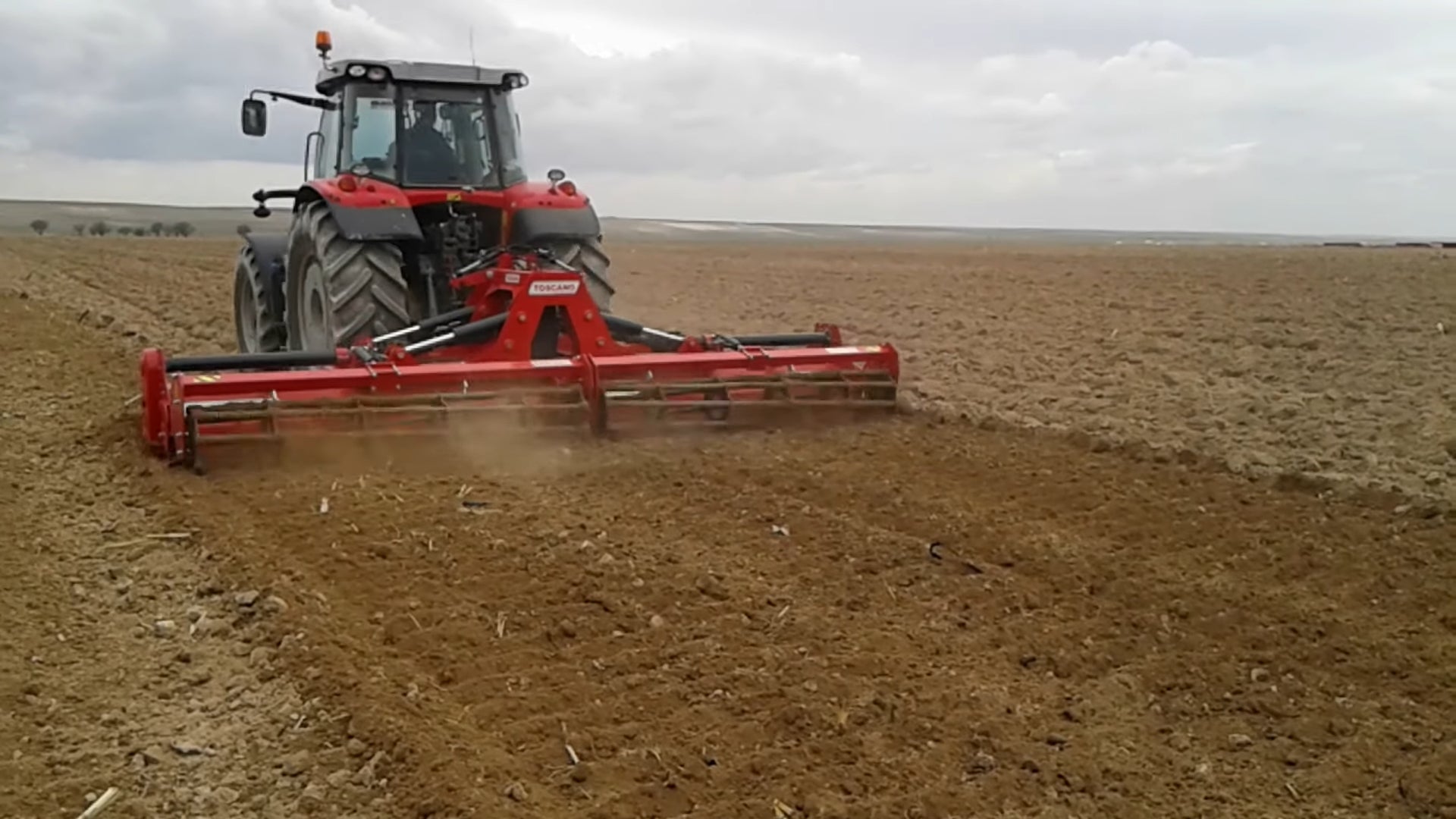

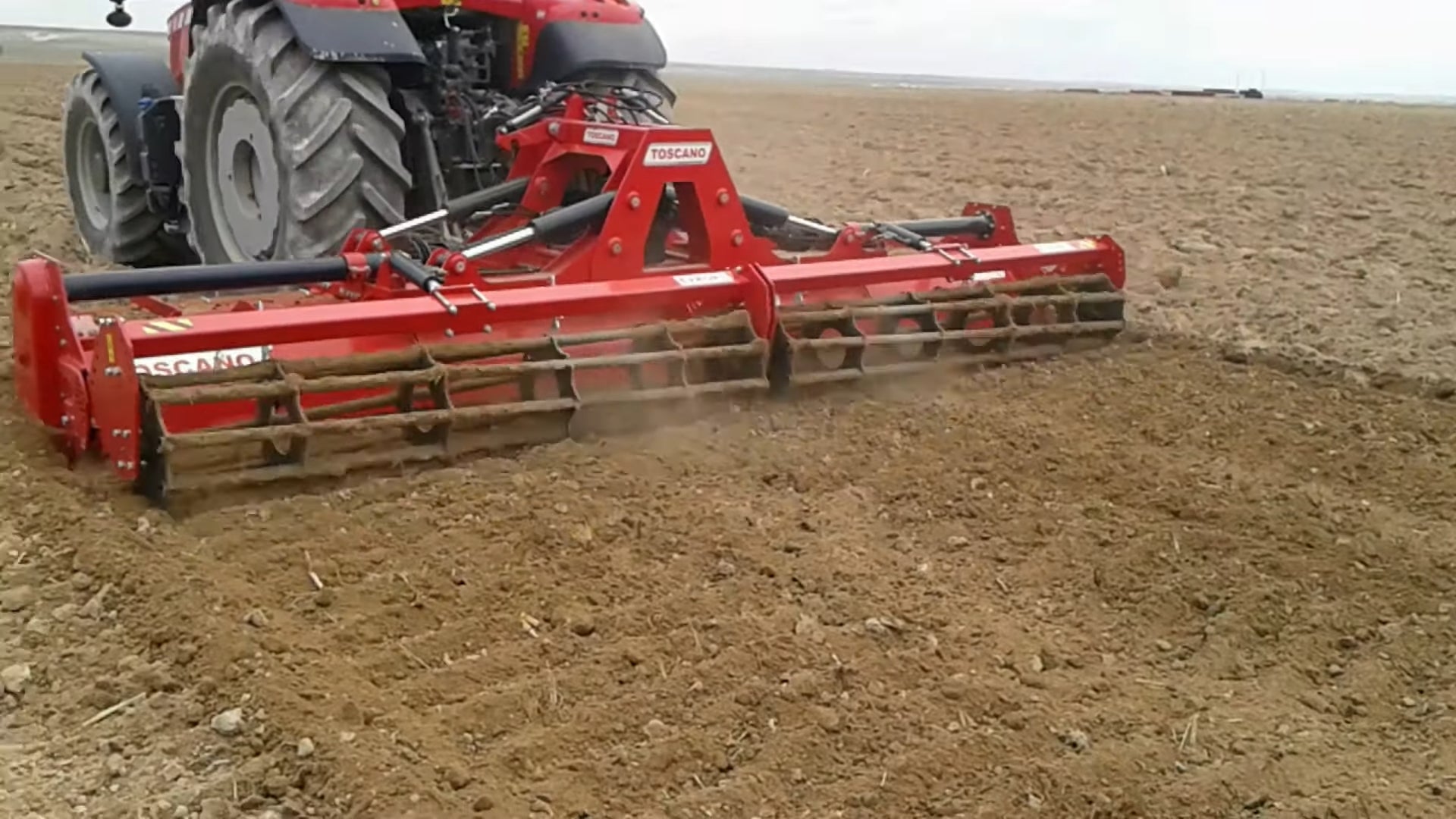

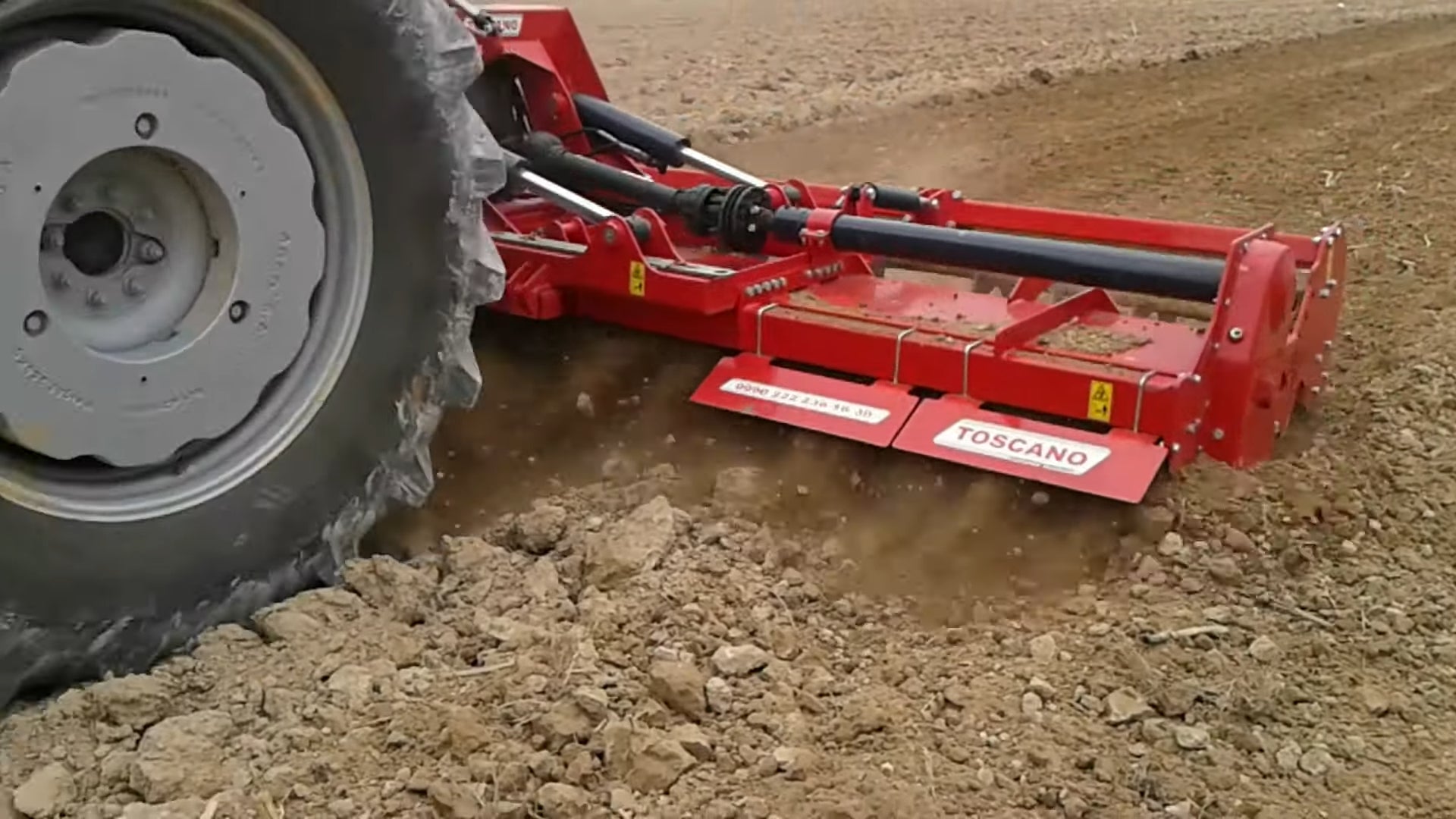

The Toscano Folding Rotary Tiller is the ultimate soil preparation tool designed for large-scale and high-efficiency farming operations. With its horizontally rotating blades, this powerful machine ensures deep soil penetration, effective weed and residue management, and perfect seedbed preparation.The Toscano Folding Rotary Tiller operates efficiently with tractors requiring 135-220 kW / 180-300 HP, making it adaptable for demanding agricultural tasks and ensuring reliable performance across varied farming conditions.

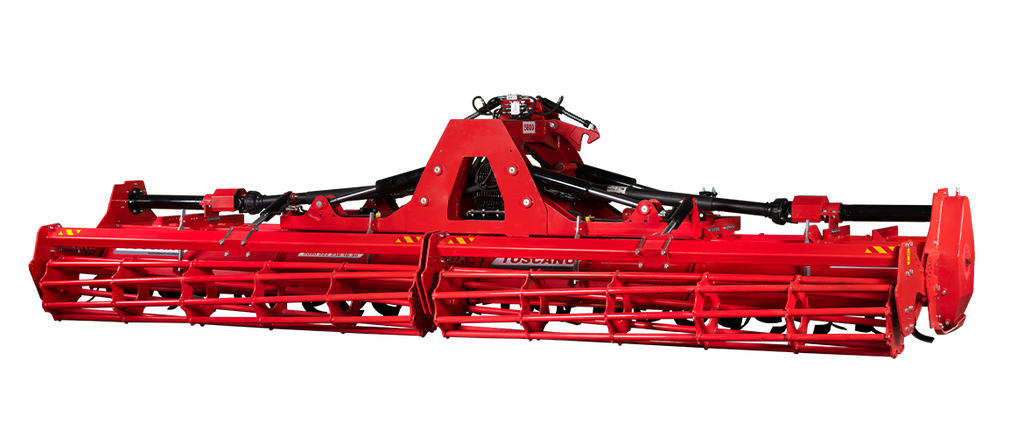

The innovative folding mechanism allows for easy transportation and storage, while the robust gearbox, durable blades, and hydraulic roller adjustment make it ideal for handling various soil conditions, even in the toughest terrains. Whether you're working in heavy clay, compacted fields, or loose sandy soil, the Toscano Folding Rotary Tiller ensures uniform, aerated, and well-mixed soil, promoting optimal seed-to-soil contact for higher yields.
Key Features
- Horizontally Rotating Blades: Mix soil from the bottom to the surface, ventilate the soil, and shred plant waste effectively for a well-prepared seedbed.
- Special Blade Angles: Enable faster tilling even in hard clods, boosting efficiency on challenging terrain.

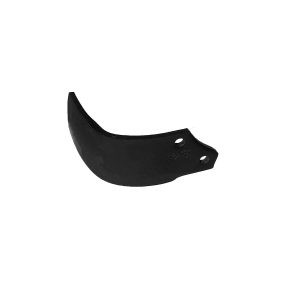

- Durable Italian-Made Blades: High-quality 10 mm thick blades ensure long-lasting reliability in tough conditions.

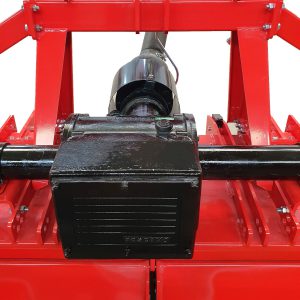

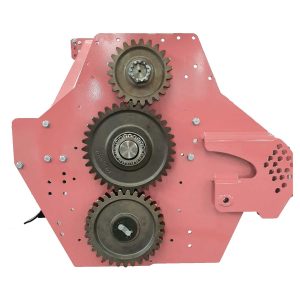

- Robust Transmission System: Steel, heat-treated side gearbox ensures smooth performance and can be greased at a single point for convenience.
- Strong PTO Gearbox: Operates at 1000 RPM with adjustable rotor speeds for precision functionality.
- Power Requirement: Operates seamlessly with tractors requiring 135-220 kW / 180-300 HP, ensuring compatibility with high-performance farming setups.

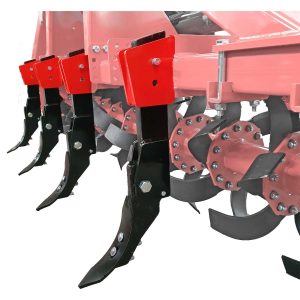

- Front Rippers: Tear up soil before rotor blades, enabling superior pulverization and enhanced soil aeration.

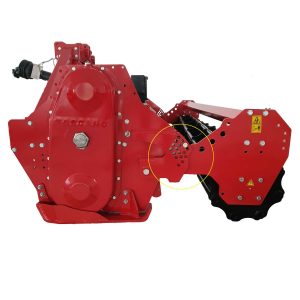

- Height Adjustment: Adjustable roller height and sludge separators tailor the tiller to varying soil structures for optimal performance.
- Flexible Back Cover: Prevents damage from stones or debris with its innovative flexing mechanism.
- Safety Assured: Removable CE safety guards ensure secure operation while maintaining ease of use.

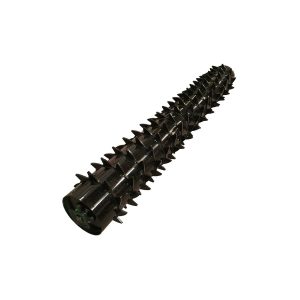

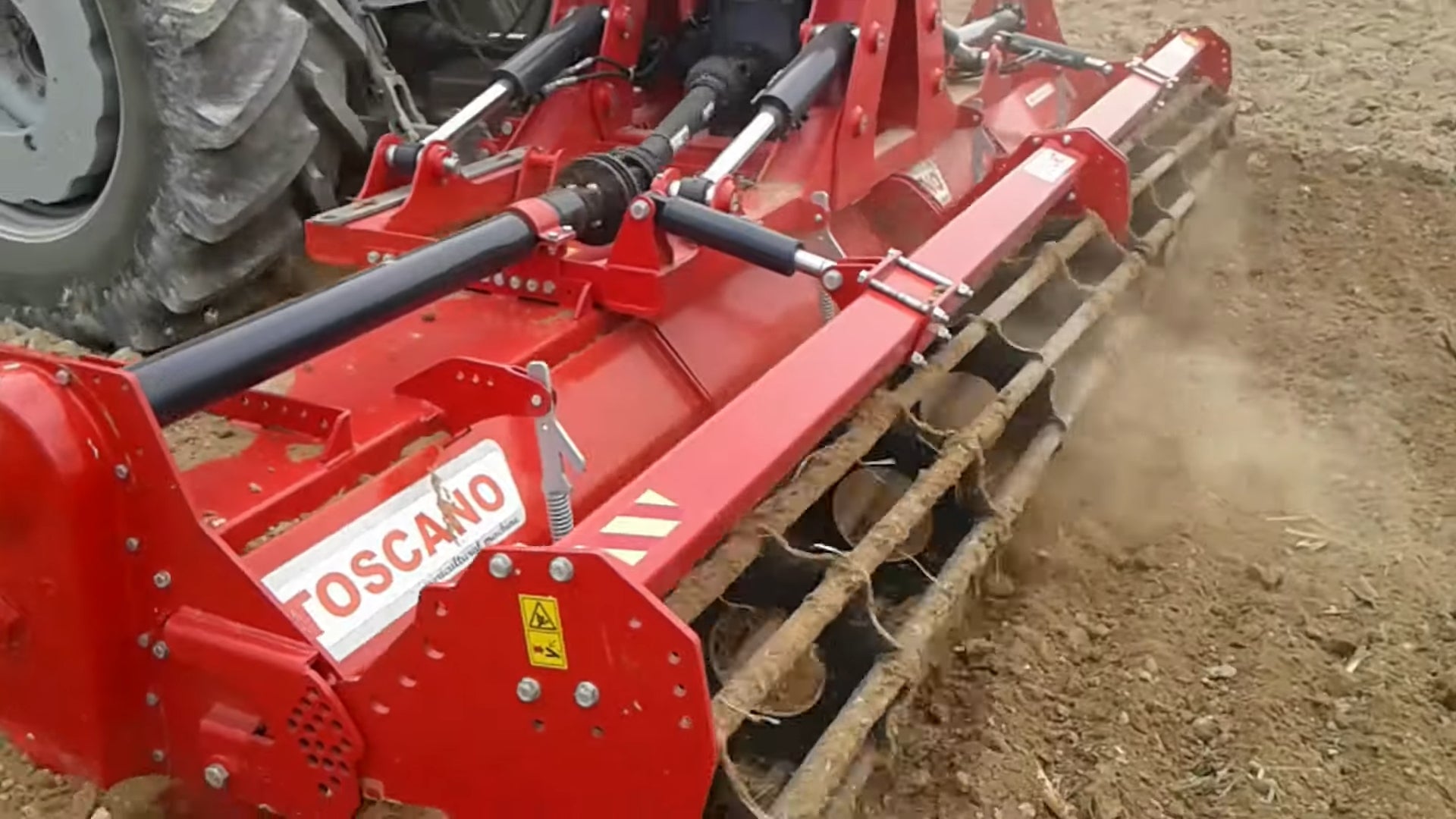

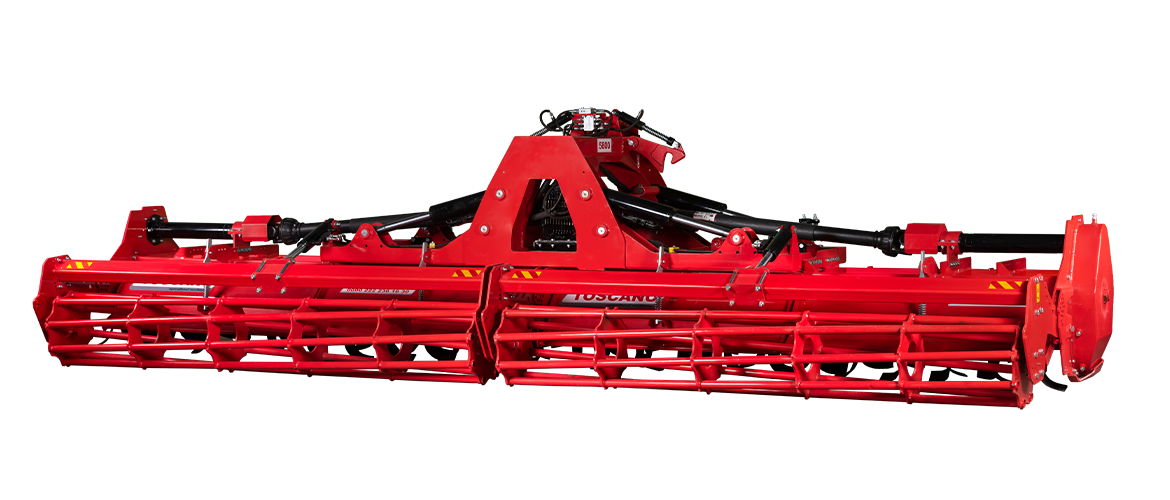

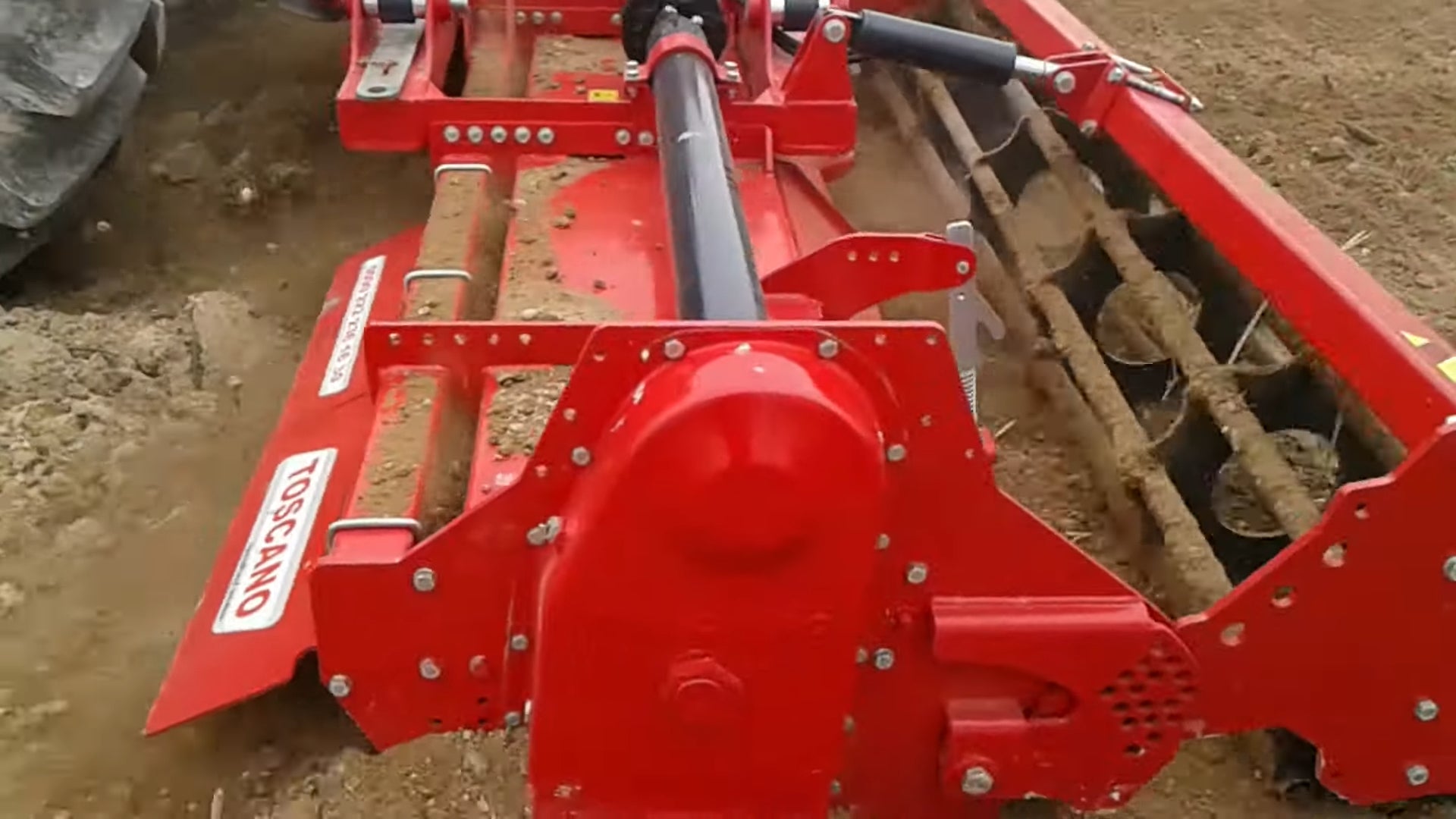

- Hydraulic Roller Adjustment Kit: Offers fine-tuned control over soil leveling and tillage depth.
Detailed Specification
| Model |
5300 |
5800 |
| Power Requirement (kW/HP) |
135-220 / 180-300 |
160-220 / 220-300 |
| Work Width |
17 Ft (520 cm) |
18.7 Ft (570 cm) |
| Total Width |
18.4 Ft (560 cm) |
20 Ft (610 cm) |
| Road Width |
7.9 Ft (240 cm) |
7.9 Ft Ft (240 cm) |
| Hoe Quantity |
120 |
132 |
| Weight (kg) |
3062 |
3196 |
| Cultivation Depth |
0.9 Ft (27 cm) |
0.9 Ft (27 cm) |
| Rip Number |
3 |
3 |
