Product Description
TOSCANO | Standard Rotary Tiller | Model 2150, 2400, 2650, 2900 & 3150 | Work Width 6.89 To 10.17 Feet | Horsepower 65-130 HP | For Tractor
DESCRIPTION

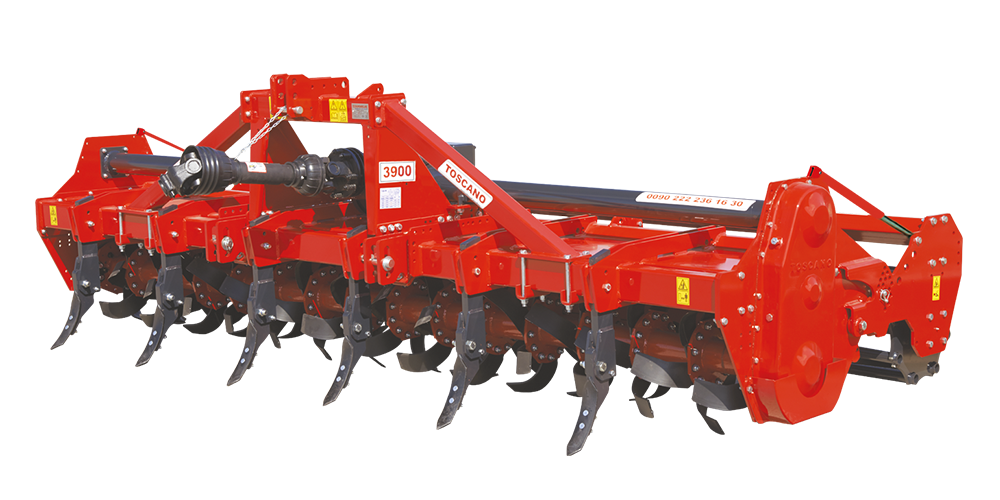

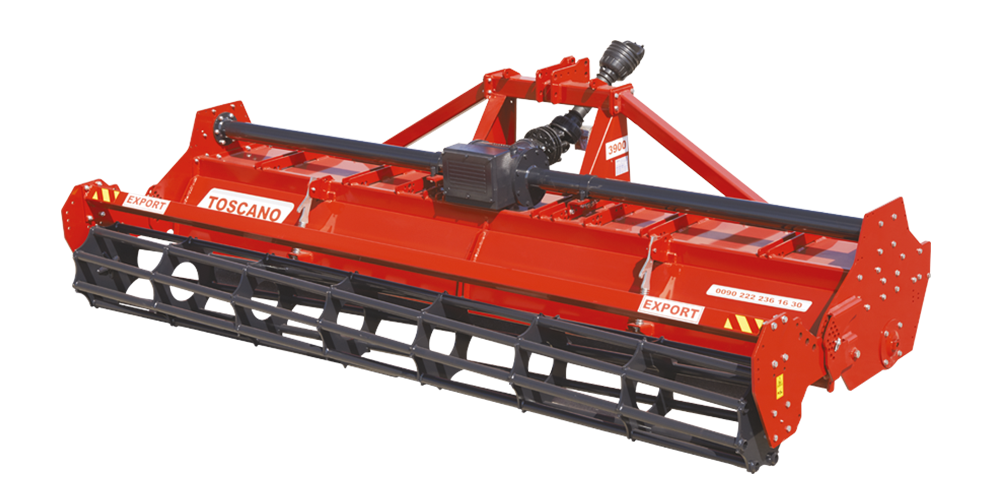

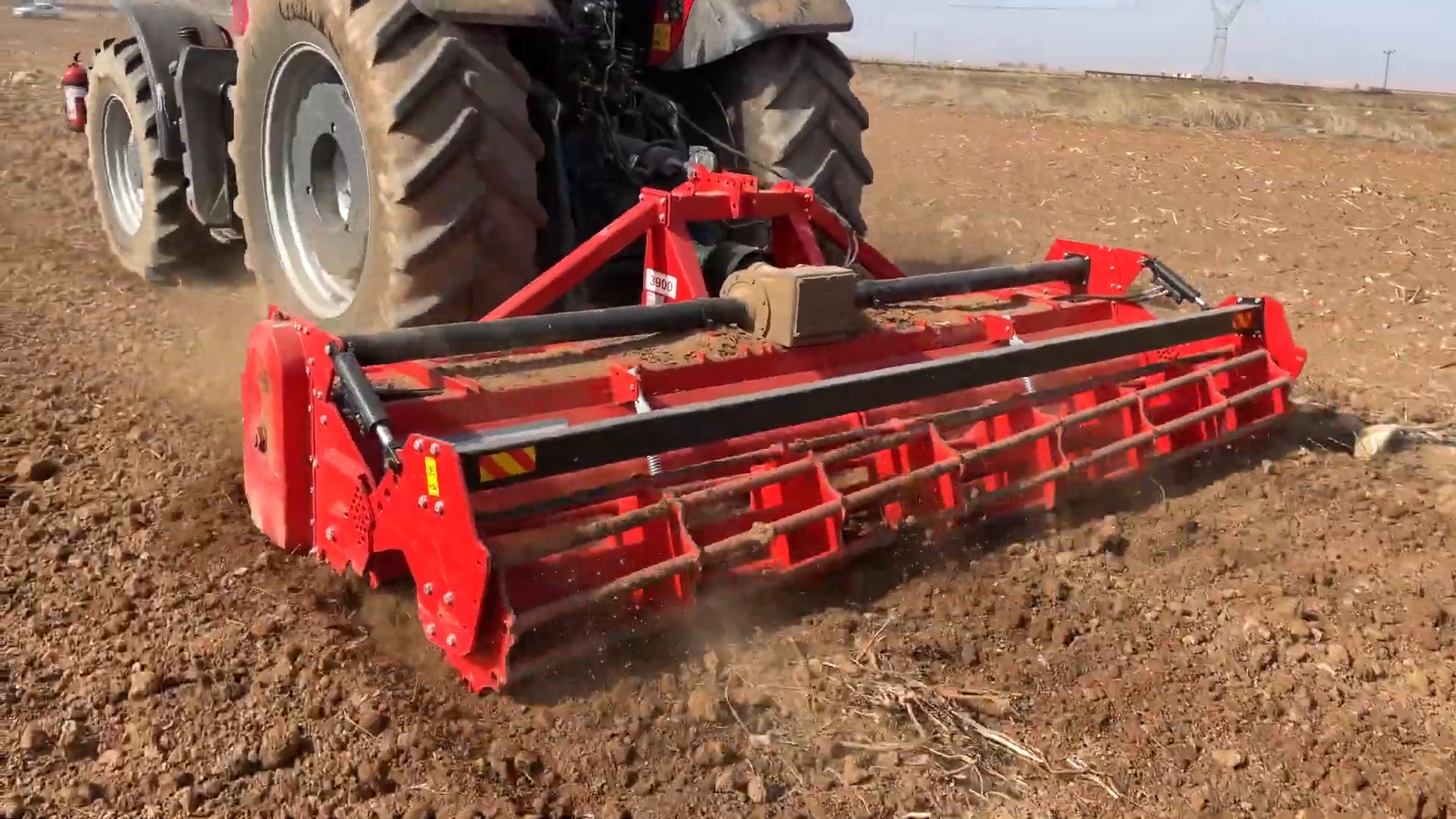

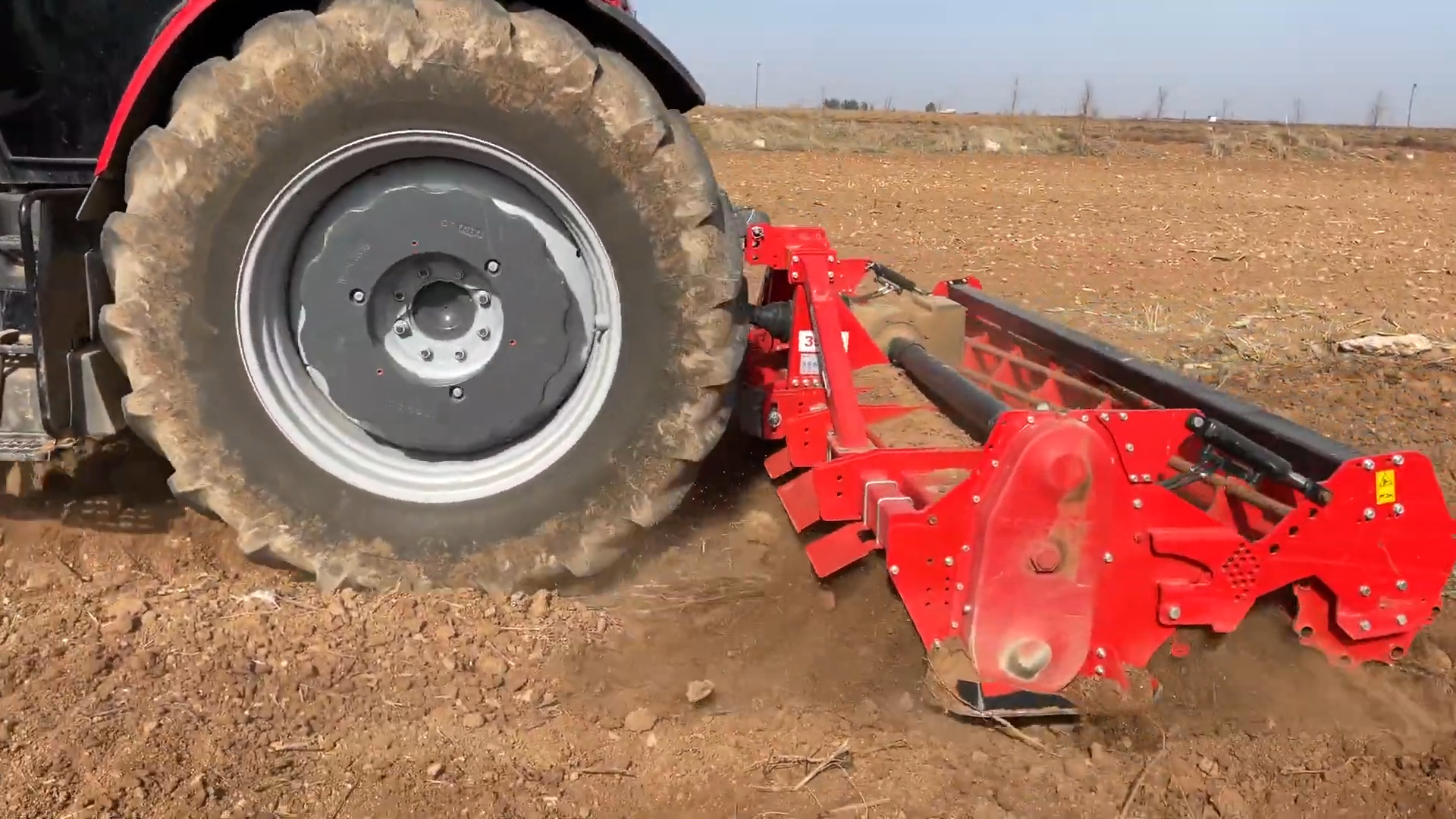

The Toscano Heavy Duty Rotary Tiller is engineered for farmers and agricultural professionals who demand efficiency and durability in soil preparation. Designed for heavy-duty operations, this rotary tiller thoroughly mixes the soil with its robust, horizontally rotating blades. It ensures optimal seedbed preparation by ventilating the soil, incorporating plant residues, and breaking down hard clods with ease.The Toscano Heavy Duty Rotary Tiller operates seamlessly with tractors requiring 81-220 kW / 110-300 HP, making it a versatile and powerful solution for demanding agricultural tasks.
With its reinforced gearbox, high-quality Italian-made blades, and multiple speed options, this tiller provides exceptional performance even in the toughest field conditions. Its hydraulic roller adjustment and flexible back cover make operations smoother, reducing damage from stones and hard objects. Whether used for deep tillage or light cultivation, Toscano’s Heavy Duty Rotary Tiller is built to deliver outstanding results.
Addtional Information
- (*) Works only with 1000 rpm
- (*) Rotor speed 250 rpm
- (*) Double driven reinforced transmission group
Key Features
-
Maximum Soil Pulverization The powerful rotor and optimally angled blades fully crumble the soil, ensuring maximum seed-to-soil contact.
-
Efficient Residue Mixing Incorporates plant residues into the soil evenly for improved organic matter distribution.
-

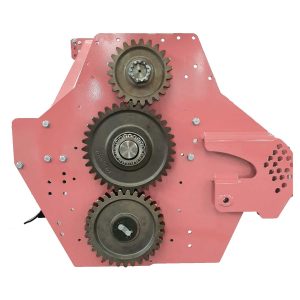

Heavy-Duty Transmission Double-driven reinforced transmission system for seamless power transfer and enhanced durability.
-

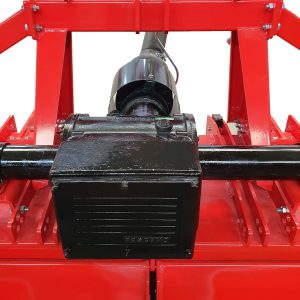

4-Speed Gearbox PTO gearbox with 540-750-1000 RPM enables users to adjust rotor speeds based on field conditions.
-
Power Requirement: Compatible with tractors requiring 81-220 kW / 110-300 HP, ensuring reliable performance across various farming conditions.
-

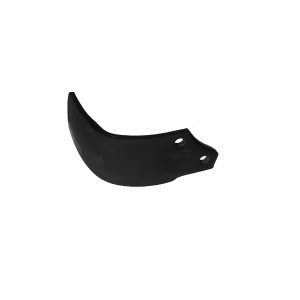

Durable, High-Quality Blades 8mm-thick Italian-made blades ensure longevity and superior cutting performance.
-

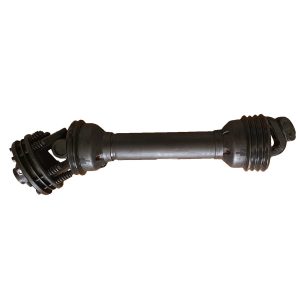

Protective Shaft Provides extra protection for both the tractor and tiller when operating at high speeds.
-

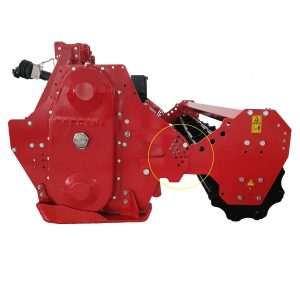

Adjustable Working Depth Roller height can be adjusted from both sides for precise depth control.
-

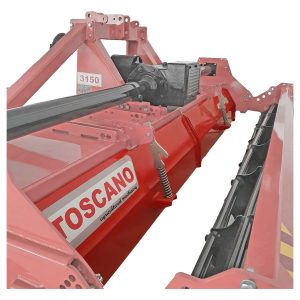

Flexible Back Cover Prevents stones and debris from causing damage by flexing upon impact.
-

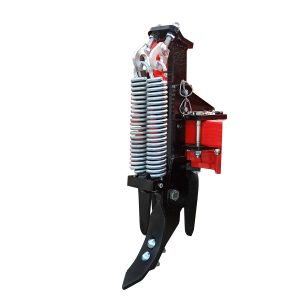

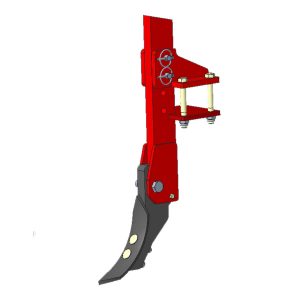

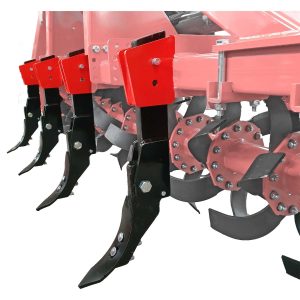

Tearing Shanks Ensures better soil pulverization by breaking up compacted layers before the rotor blades engage.
-

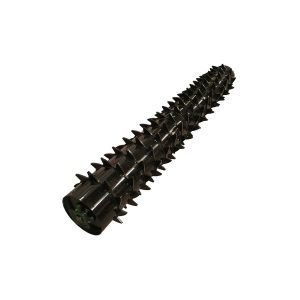

Optional Attachments Available Customize your tiller with Packer Roller, Pinned Ploughshares, and Spring Ploughshares for enhanced soil management.
Detailed Specifications
Heavy-Duty Rotary Tiller Specifications
| Model |
3400 |
3650 |
3900 |
| Tractor Power (kW/HP) |
81-118 / 110-160 |
89-118 / 120-160 |
97-118 / 130-160 |
| Work Width (ft) |
10.99 ft |
11.81 ft |
12.63 ft |
| Total Width (ft) |
11.65 ft |
12.47 ft |
13.29 ft |
| Hoe Quantity |
78 |
84 |
90 |
| Cultivation Depth (ft) |
0.89 ft |
0.89 ft |
0.89 ft |
| Weight (kg) |
1,324 kg |
1,689 kg |
1,760 kg |
| Rip Number |
6 |
6 |
6 |
Extended Capacity Models
| Model |
4300*
|
4800*
|
5300*
|
5800*
|
| Tractor Power (kW/HP) |
119-164 / 150-220
|
119-164 / 160-220
|
135-220 / 180-300
|
160-220 / 220-300
|
| Work Width (ft) |
13.78 ft
|
15.42 ft
|
17.06 ft
|
18.70 ft
|
| Total Width (ft) |
14.93 ft
|
16.56 ft
|
18.21 ft
|
19.85 ft
|
| Hoe Quantity |
96 |
108 |
120 |
132 |
| Cultivation Depth (ft) |
0.89 ft
|
0.89 ft
|
0.89 ft
|
0.89 ft
|
| Weight (kg) |
1,850 kg
|
2,000 kg
|
2,150 kg
|
2,300 kg
|
| Rip Number |
2 |
2 |
2 |
2 |
